Pre-coated Carrier Foils

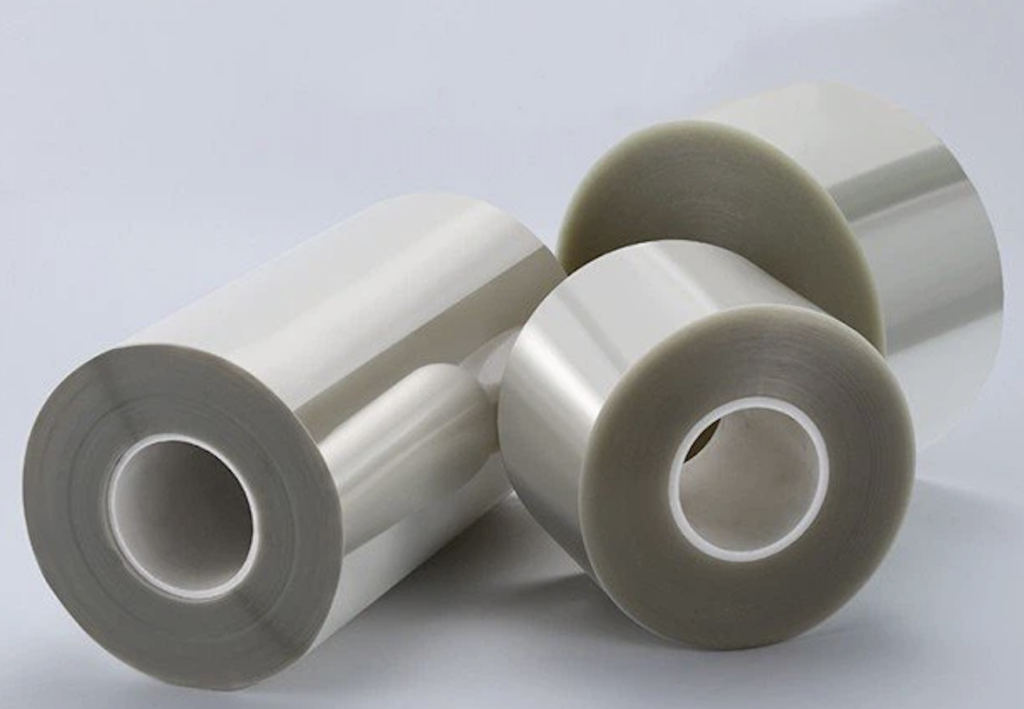

OpTool can deliver ready-to-use carrier foil.

The foils are coated with adhesion promoter, no need for any further processes.

PET foil (suitable for all polymer stamp materials)

  • Adhesion promoter A.
  • Thickness: 50μm, 75μm, 100μm, 150μm, 250μm.
  • Low cost.
  • Can be delivered as 300m to 1000m length as roll.

PET foil (with protection foil on the Non-coated side)

  • Adhesion promoter B.
  • Thickness: 130μm, 250μm.
  • High cost.
  • Can be delivered as custom-made cut sheets or as roll 400m length.

PC foil (with protection foil on the coated side)

  • Adhesion promoter C.
  • Thickness: 250μm.
  • High cost
  • Delivered as cut sheets.

Note:

Customer can use any other foil/material and apply suitable adhesion promoter to be used as carrier foil / carrier substrate.
